MS PTFE

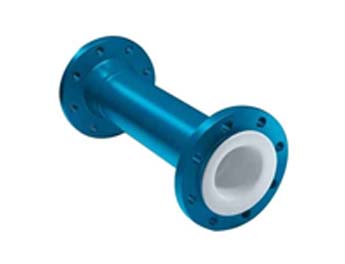

MS PTFE Lined Pipe
-
Specification:
-
Pipe:Seamless Sch. 40 CS ASTM A 106 Gr.B, ASTM A312 TP 304 / TP316
-
Flange:IS 2062 / ASTM A105, ASTM A351 Gr. CF8
-
Lining:PTFE / HDPE / PP / PVDF
-
Inspection & Testing:ASTM F1545-97
-
Hydraulic Test:25 Kg/Cm2
-
Spark Test:15 Kv

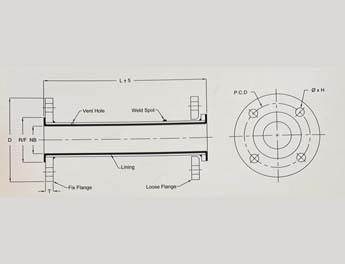

Dimension Detail
| Size NB | Size Inch | +-0.5 mm Lining Thickness | Length +- 5mm Maximum LG |
|---|---|---|---|
| 25 | 1" | 3 | 3000 |
| 40 | 1 1\2" | 3.5 | 3000 |
| 50 | 2" | 3.5 | 3000 |
| 80 | 3" | 4 | 3000 |
| 100 | 4" | 5 | 3000 |
| 150 | 6" | 6 | 3000 |
| 200 | 8" | 7 | 1000 |
| 250 | 10" | 7 | 1000 |
| 300 | 12" | 7 | 1000 |
Flange Dimention Detail (MM) (ANSI CLASS 150#)
| R/F | P.C.D | D | T | NO. of Hole {N} | Hole Dia { Φ } |
|---|---|---|---|---|---|
| 50.8 | 79.4 | 108 | 14.5 | 4 | 15.9 |
| 73 | 98.4 | 127 | 17.5 | 4 | 15.9 |
| 92.1 | 120.7 | 152.4 | 19.5 | 4 | 19 |
| 127 | 152.4 | 190.5 | 24 | 4 | 19 |
| 157.2 | 190.5 | 228.6 | 24 | 8 | 19 |
| 215.9 | 241.3 | 279.5 | 25.5 | 8 | 22.2 |
| 269.9 | 298.5 | 342.9 | 29 | 8 | 22.2 |
| 323.9 | 362 | 406.4 | 30.5 | 12 | 25.4 |
| 381 | 431.8 | 482.6 | 32 | 12 | 25.4 |
