MS PTFE

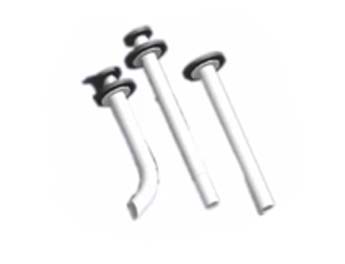

MS PTFE Lined J Type Pipe & Drop Tube

Specification:
Body:

Pipe Seamless CS / SS ASTM A106
Flange:

IS 2062 / ASTM A105 Gr. B
Drilling Standard:

ANSI B16.5 #150
Lining:

PTFE (Inside & Outside)
Additional Specification:

Pure PTFE Drop Tube
Spark Test Internal:

10 Kv
Spark Test External:

5 Kv

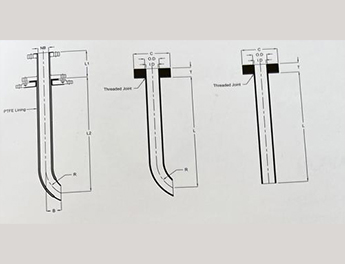

Dimension for J Type Dip Pipe

Normal Size(NB)	B	R	L1	L2
25	100	150	125	450
40	125	200	125	535
50	150	250	125	685
80	150	400	125	750
100	200	500	150	915

Dimension for Solid J Type Drop Tube

Nominal Dia	ID	OD	T	C	R
25	25	40	40	73	150
40	35	50	45	92	200
50	50	63	50	125	250
80	70	82	70	158	400
100	9	103	75	215	500
